E3VR-45R 45 Degree Vertical Bike Park

The E3VR-45R provides angled vertical parking, reducing the distance a bicycle extends from the wall or mounting post by 25%. The bike enters this rack from the right of centre, making it ideal for narrow spaces.

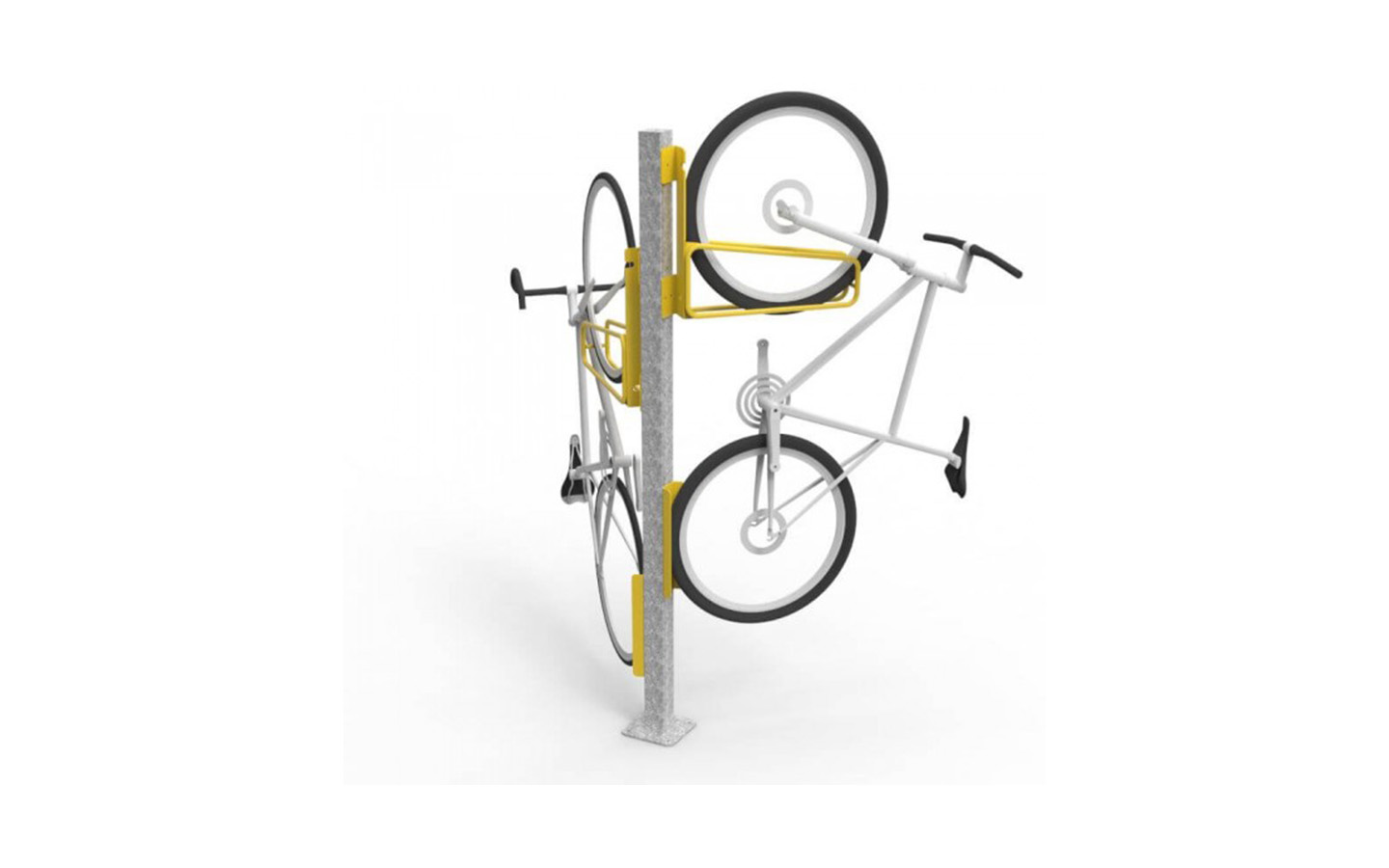

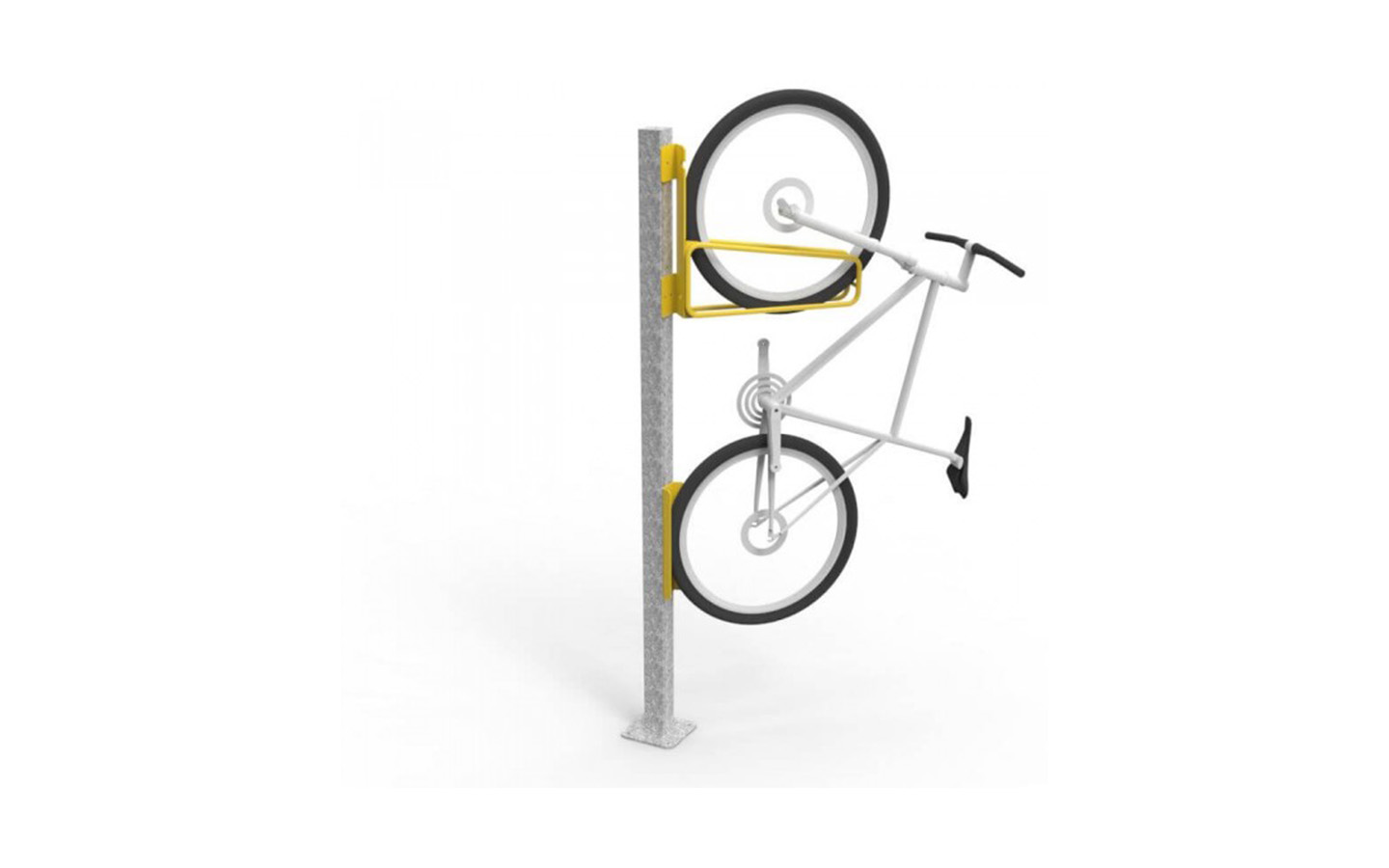

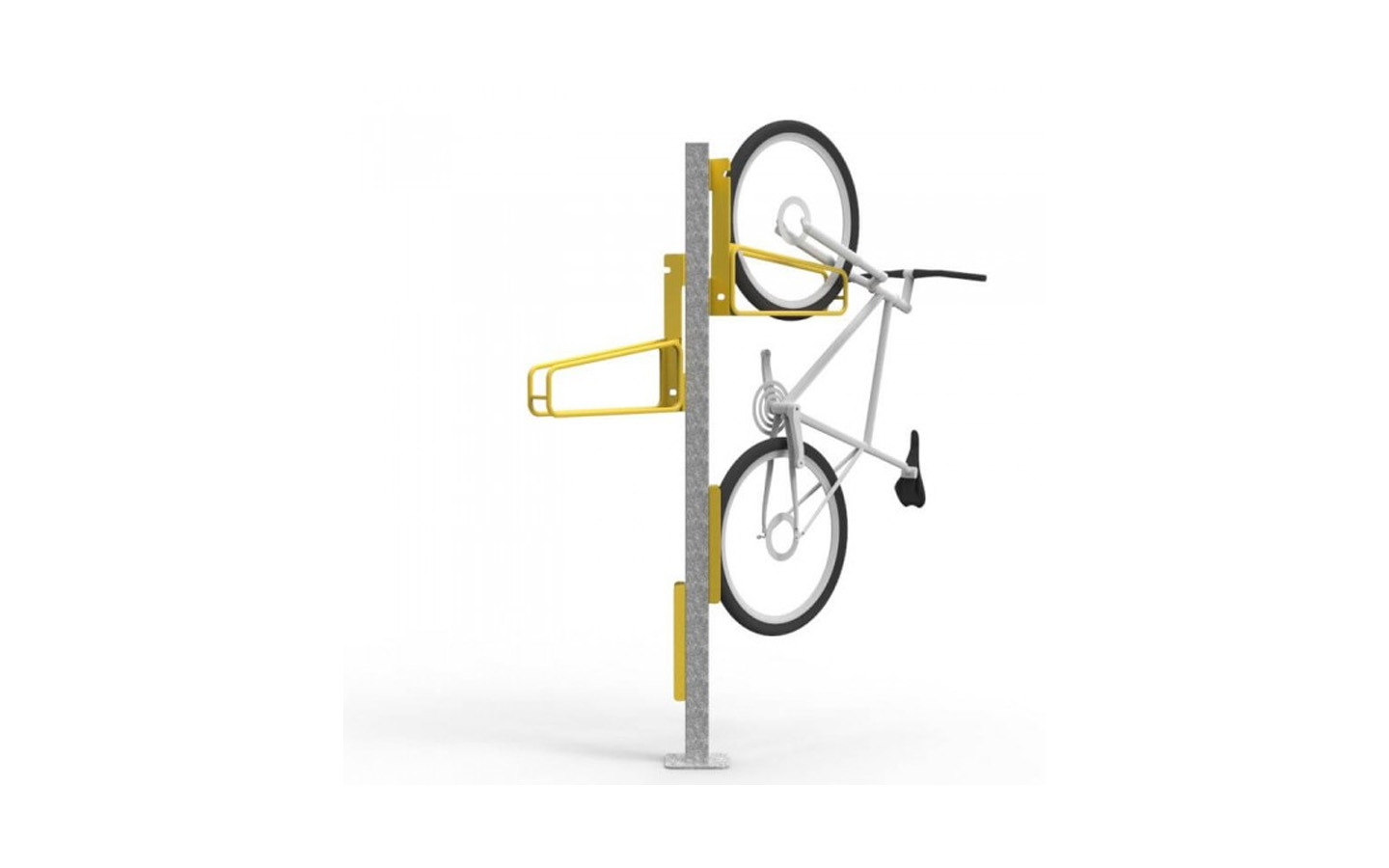

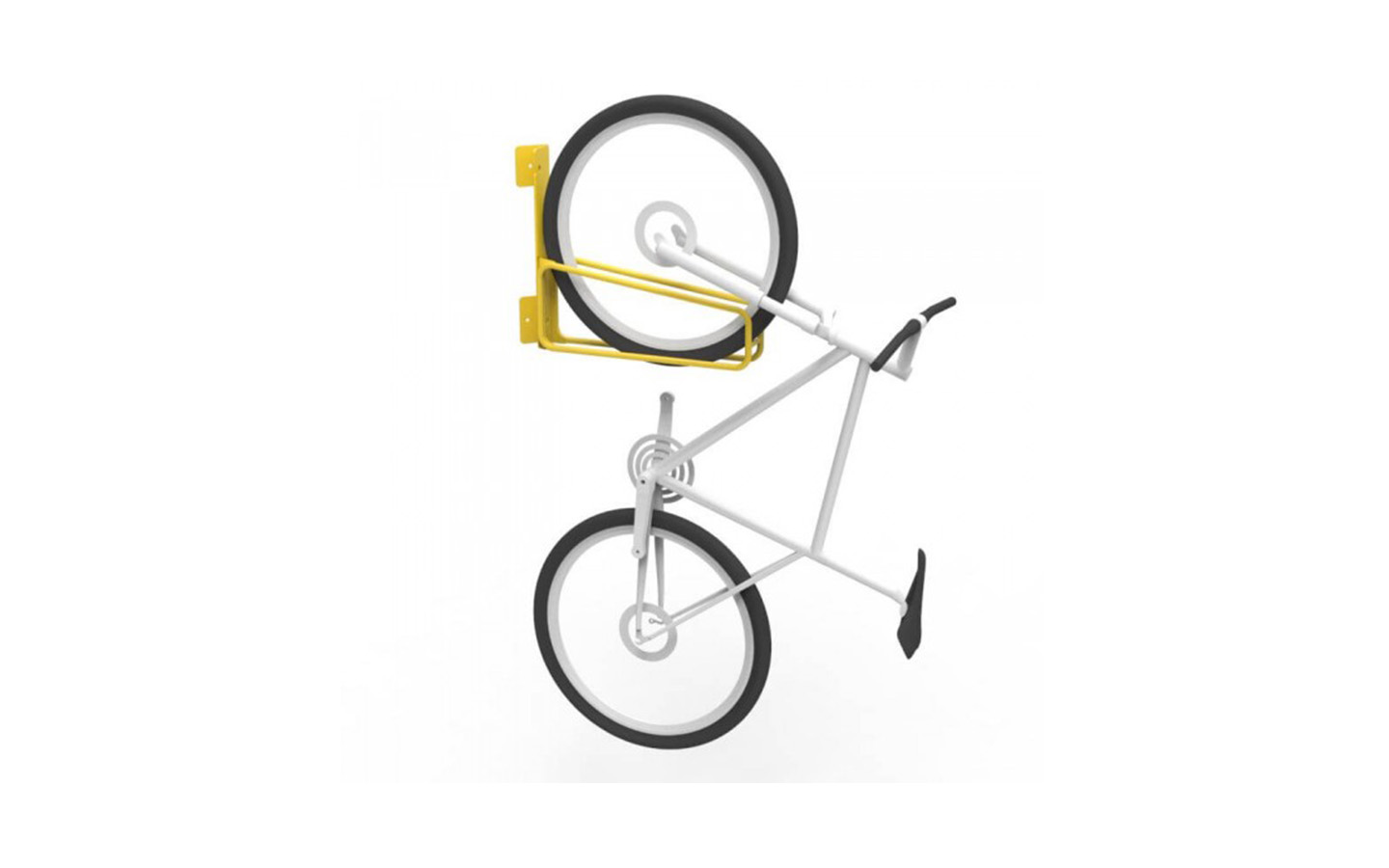

The E3VR-45R can be mounted directly to existing walls or to the E3VR-P mounting post. It gently cradles the front wheel, ensuring bike safety and easy access parking. Best suited for indoor or covered areas such as car parks and bike storage rooms, the E3VR-45R is a space-efficient solution.

For bikes with front wheel fenders or mudguards, the E3VR-F model is recommended.

E3VR-45R bike racks comply with AS2890.3 (2015) requirements.



Features & Benefits


  • 1 bike per rack


  • Heavy duty high quality steel
  • 16mm CHS x 1.2mm


  • 3 x M8 x 40mm pin head torx security screws with tool, washers and nylon wallplugs included


  • Supplied fully welded and assembled. For pole mounted option, assembly to pole E3VR-P required


  • In Stock – Yellow Powder Coat
  • Option – Galvanised
  • Option – 304 Stainless Steel
  • Option – Colour Powder Coat (Standard colour range)

More Uses

  • Office buildings
  • Residential complexes
  • Schools and universities
  • Indoor or covered car parks
  • Bike storage rooms
  • Shopping centres and malls
  • Public transport stations
